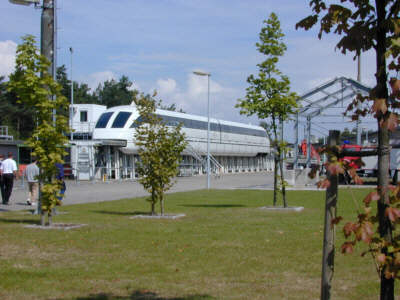

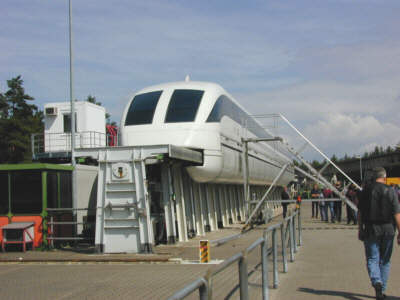

As we walk up to the TR07, we can see it parked on a spur for the time being.

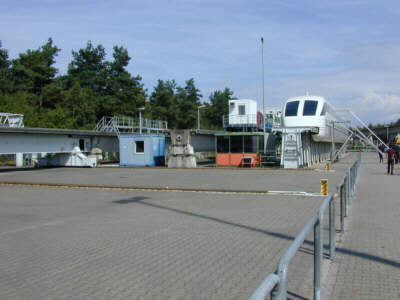

In fact, the unit is on one of three tracks served by a large transfer table.

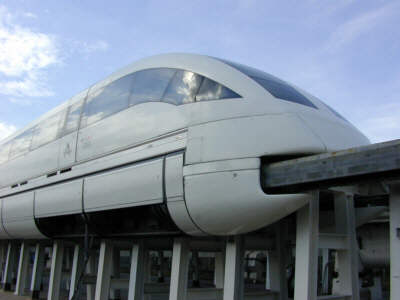

Details of the front section come into view.

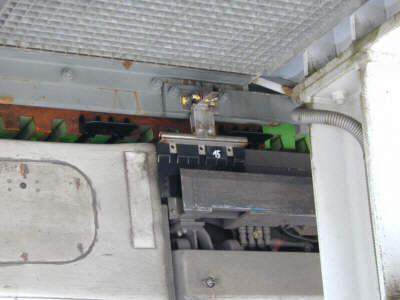

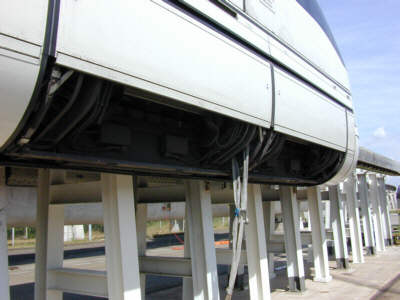

Peeking under the front fairing, we can see the magnetic support assembly as it enters the train.

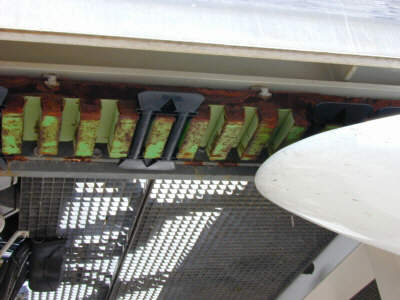

This is a view of the far side of the track... the inside of the magnetic units.

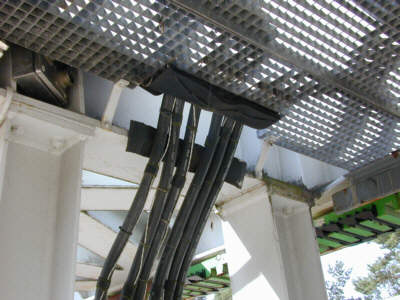

Can anyone say "High Current"?
Two panels near one end are open for inspection.

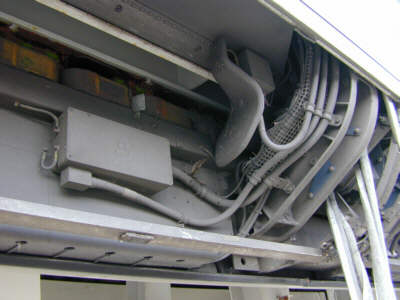

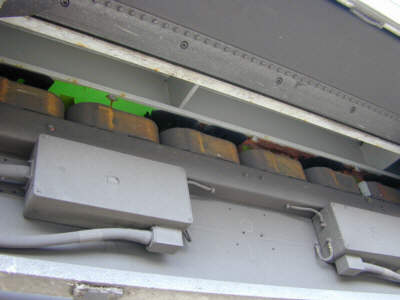

Details within the open sections
Looking back into the sun at the two open panels.

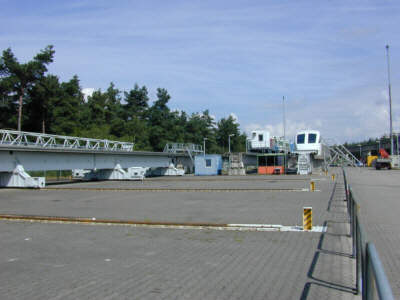

A wide-angle view of the TransRapid transfer table.
